詳細信息：

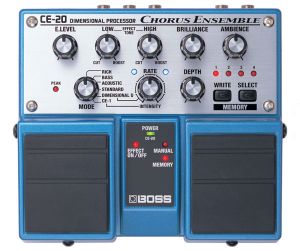

BOSS CE-20‧ 集合BOSS畢生心血技術的和聲效果器踏板
‧ 6種和聲模式：Rich, Bass, Acoustic, Standard, CE-1和Dimensional D
‧ Brilliance亮度參數可調整出"Sparkling"充滿活力的和聲感覺
‧ Ambience控制可加入和聲的迴響效果，更增進和聲的空間感
‧ 可儲存記錄4種不同設定
‧ Stereo立體聲輸入/輸出以及耳機輸出
‧ 藍色LED指示燈，清楚顯示和聲速率.
特色說明
涵蓋經典到現代的和聲效果。身為和聲效果踏板的發明者，沒有人不知道BOSS的和聲效果無人能及。 這就是為什麼CE-20要包含6種和聲模式--從最經典的CE-1和SDD-320到現代的和聲效果。 除此之外並特別提供了三種新的和聲模式給BASS和空心吉他，以獲得最豐厚的聲音及和聲。
全新的音質調整控制機能經由"Brilliance"聲音亮度控制旋鈕，您可以調整出充滿活力如火花般的"Sparkling"和聲效果，秘密在於CE-20獨特的技術能力，讓吉他手有效增強最佳和聲效果。。另一個新的控制是"Ambien ce"旋鈕，可在和聲中加入迴響效果，使聲音感覺出更具深度與空間感。 從來沒有一種效果器可以如此！
參數
| 額定輸入等級 | 20 dBu (GUITAR/BASS), +4 dBu (AMPLIFIER SEND/RETURN) |
| 輸入阻抗 | 1M歐姆 |
| 額定輸出等級 | 44.1KHz 20 dBu (GUITAR/BASS), +4 dBu (AMPLIFIER SEND/RETURN) |
| 輸出阻抗 | 1 k歐姆(OUTPUT R (MONO), L), 33 ohms (PHONES) |
| 控制介面 | Effect On/Off踏板,人工/記憶踏板, E. Level旋鈕, Low旋鈕, High旋鈕, Brillance旋鈕, Ambience旋鈕, Mode旋鈕, Rate旋鈕, Depth旋鈕,記憶寫入按鍵,記憶選擇按鍵, Level開關 |
| 指示燈 | 電源, EFFECT ON/OFF , MANAUL, MEMORY, PEAK, RATE, MEMORY, Number 1 - 4 |
| 輸出入端子 | INPUT Jacks (R (MONO), L)(1/4 inch phone type), PHONES Jack (stereo 1/4 inch phone type), OUTPUT Jacks (R (MONO), L)(1/4 inch phone type), AC Adaptor Jack |
| 電源需求 | 乾電池(AA) x 6, AC Adaptor (DC 9V) |
| 電流負載 | 160mA |
| 估計電池連續使用時間 | 碳鋅電池約4小時，鹼性電池約10小時 |
| 外觀尺寸 | 173(寬) x 158(深) x 57(高) mm |
演示視頻：
視頻1
視頻2
Overview
BOSS’ Ultimate Chorus Pedal
The CE-20 Chorus Ensemble is the culmination of over 25 years of BOSS chorus experience. This programmable chorus pedal
not only models classics like the CE-1 and SDD-320, but creates entirely new effects including chorus for bass and
acoustic guitar. New “Brilliance” and “Ambience” knobs offer unprecedented realtime control over the chorus tone-making
the CE-20 a pedal no guitarist should be without.
●BOSS' finest chorus effects ever offered in a compact pedal
●6 chorus modes: Rich, Bass, Acoustic, Standard, CE-1 and Dimensional D
●Brilliance parameter adjusts “sparkling” feel of chorus
●Ambience control adds reverberation to chorus for greater spaciousness
●4 User memories with pedal recall
●Stereo In/Out and Headphone output
Details
Classic and Modern Chorus Sounds
As the creator of the chorus pedal, no one knows chorus better than BOSS. That's why the CE-20 includes six chorus modes
covering classic sounds from the CE-1 and SDD-320 to modern chorus effects. Three new types of chorus are also provided,
for getting everything from extremely rich sounds to chorus tuned specifically for bass and acoustic guitar.
New “Brilliance” and “Ambience” Controls
Using the Brilliance knob, you can control the “sparkling” feel of the CE-20's chorus sounds for effects that really cut
through the mix. The secret is the CE-20's unique ability to enhance a guitar's harmonics. Another new control is the Ambience
knob, which adds reverberation to the chorus for even greater spaciousness and depth. There's never been a sound like it!
Specifications
Memories 4
Nominal Input LevelGUITAR/BASS: -20 dBu
GUITAR AMP,SEND/RETURN: +4 dBu
Nominal Output Level GUITAR/BASS: -20 dBu
GUITAR AMP, SEND/RETURN: +4 dBu
Residual Noise Level -93 dBu or less (IHF-A typ.)
Power Supply DC 9V: Dry Battery x 6, AC adaptor
Current Draw 160 mA (9V max.) * Expected battery life undre continuous use;[Carbon: 4 hours],
[Alkaline: 10 hours] These figures will vary depending on the actual conditions
of use.
Accessory Dry Battery x 6 (We recommend that alkaline batteries be used when replacing the
batteries.)
Option AC adaptor (PSA Series)
Size and Weight ( incl. batteries )
Width173 mm 6-13/16 inches
Depth 158 mm 6-1/4 inches
Height 57 mm 2-1/4 inches
Weight 1.1 kg 2 lbs. 7 oz.
* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.
