燃氣具CE認證

燃氣具CE認證,商品的自由流通是建立單一市場的基石,實現商品自由流通的機制就是CE標誌,這個機制建立在歐盟各國之間避免產生新的貿易壁壘、相互認可和技術標準協調之上。為了使指令里規定的產品基本要求更具有可操作性,由各成員國負責將本國的標準與之協調一致。並且協調標準是否符合指令精神的討論機制和標準修改機制也隨之建立起來。由於指令里規定的要求是各國都要遵守的要求,所以這些要求應該是公認的防範安全隱患或其他危害的最低綱領。為了在實踐中得到貫徹,歐盟進規定產品是否符合指令規定的基本要求的可靠的評估方式,即人們俗稱的CE認證。

歐盟起源

20世紀40年代,西歐國家感到,要在美蘇兩大國之間保證自己的安全,提高國際地位,加快經濟發展,必須聯合起來,因此力推歐洲一體化進程。歐洲一體化可分五個層次:建立自由貿易區、關稅同盟、統一大市場、經濟貨幣聯盟和政治聯盟。

歐Qq洲單一市場

1985年,法國前財政部長雅克·德洛爾開始擔任歐共體委員會主席。同年6月,在米蘭首腦會議上,歐洲委員會正式提出要在歐共體內部建立“無國界”的統一大市場,真正實行人員、商品、資本、服務的自由流通。1986年歐共體簽署《歐洲單一檔案》,計畫創建單一市場,同年西班牙和葡萄牙加入歐共體。1993年1月1日,歐洲統一大市場正式投入運作。

CE標誌

其原則如下:
- 協調統一的法律檔案(即歐盟指令)規定的內容僅限於產品的基本要求,以利於產品在歐盟範圍內自由流通;
- 歐盟協調標準包含了指令的基本要求;
- 歐盟協調標準和其他標準的適用是自願的,產品可以選擇適用歐盟協調標準,也可以適用別的的技術規範以滿足指令規定的基本要求;
- 產品滿足了歐盟協調標準當然地確認為滿足了指令的基本要求。
- 引入產品評估模組化概念,由評估模組組成產品評估程式,按照評估程式經評估合格的產品使用CE標誌;
- 引入統一歐盟協調標準、質量管理體系標準(EN ISO 9000系列)和評估機構的質量保證標準(EN45000系列);
- 在歐盟的層次上、在各成員國之間建立評估機構認可體系和評估機構之間的比對機制;
- 在原來各國各自為陣的產品測試和認證領域建立互認機制;
- 簡化各成員國之間、各行業之間質量領域系統結構(如:計量和校驗系統、測試實驗室、認證和檢驗組織、認可組織)的差異;
- 利用互認協定、合作和其他技術協助項目,推動成員國之間、成員國與歐盟以外的國家之間的國際貿易。
CE標誌的目的是要提供實踐中確實可行的靈活的產品合格評估的途徑,以滿足全球經濟一體化趨勢下現代工業生產的多樣性。迎合產品研發、生產、流通的各個階段(如:設計、打樣、生產),產品評估模組分為技術檔案檢查、型式測試、質量保證,以及在實踐中由生產者或第三方機構完成評估。
產品在投放市場和投入服務前都必須滿足所有適用的歐盟指令的基本要求,選擇適當的產品評估程式進行產品評估合格後標記CE標誌。凡是標記CE標誌的產品都認為已經滿足了歐盟的所有指令,各成員國必須採取積極措施保證其在單一市場自由流通,除非有明確的證據表明該產品並不滿足適用指令里的基本要求,或該產品存在尚未被現有指令規定的某種顯著危險。
評估模組中規定由第三方機構作為評估機構進行產品符合性評估的機構必須是歐盟成員國指定的、按照審核程式審核通過的公告機構。Advantica就是其中的一個公告機構,公告號碼為0087。

歐盟指令

目前,適用CE標誌的歐盟指令共有二十幾個(如:低電壓指令LVD、電磁兼容性指令EMC、燃器具指令GAD、鍋爐能效指令BED、機械指令MD等)。這二十幾個指令均包含以下內容:
- 產品範圍
- 產品投放市場和投入服務的規定
- 產品的基本技術要求
- 在單一市場自由流通的規定
- 標記CE標誌的產品被當然地認為滿足指令基本要求的規定
- 保護性條款
- 產品評估模組和由模組組成的產品評估程式
- 公告機構和CE標誌的規定
一個產品在投入歐盟市場銷售或投入使用之前,產品標記CE標誌,往往涉及多個歐盟指令的要求,燃氣具產品也不例外。比如,燃氣燒烤爐和燃氣灶具必須滿足燃氣具指令(GAD)的要求;使用市電的電子控制燃氣烤箱必須滿足燃氣具指令(GAD)、低電壓指令(LVD)和電磁兼容性指令(EMC)的要求;使用市電的電子控制燃氣熱水器和電子控制燃氣鍋爐必須滿足燃氣具指令(GAD)、低電壓指令(LVD)、電磁兼容性指令(EMC)和鍋爐能效指令(BED)。所以,一款燃器具產品的CE認證要考察以下三個問題:
1. 產品適用哪個或哪幾個歐盟指令?
2. 這些歐盟指令規定的產品評估模組和由評估模組組成的產品評估程式是怎樣的?
3. 產品需要分別符合哪些歐盟協調標準才可以當然地認為分別滿足了這些歐盟指令的要求?

燃氣具產品適用的歐盟指令

燃氣具指令——毋庸置疑,燃氣具產品肯定適用歐盟燃氣具指令(GAD)。燃氣具指令包括的產品範圍為:以氣體燃料為主要能源用於烹飪、加熱、熱水、製冷、照明或洗滌的器具及用於這些器具的安全控制部件或組件,如果器具含有水來工作,則水正常工作的溫度不超過105OC。純工業過程用途的燃氣燃燒設備不屬於燃氣具指令範圍。
鍋爐能效指令——以液態燃料或氣態燃料為主要能源、以水為熱傳遞媒介、額定輸出功率在4kW和400kW之間的器具為鍋爐能效指令的產品範圍。一般燃氣熱水器、熱氣壁掛爐都適用鍋爐能效指令。
低電壓指令——額定輸入電壓在50~1000Vac或75~1500Vdc的普通電器產品均應適用低電壓指令的要求。燃氣具產品如果使用了市電給控制電路供電,則該產品同時也要滿足低電壓指令即電氣安全的要求。
電磁兼容性指令——普通電器產品均適用電磁兼容性指令。燃氣具產品如果使用了控制電路控制燃氣供給,不管這個控制電路是由市電還是乾電池供應電能,產品都應該滿足電磁兼容性指令的要求。
燃氣具產品符合性評估模組和由模組組成的評估程式

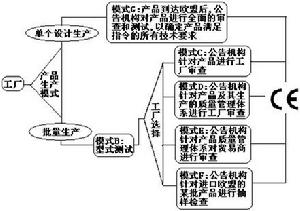

燃氣具指令——燃氣具指令包含的評估模組有六個,分別稱之為:模式B、C、D、E、F和G。由這些模組組成的評估程式有五種,根據產品生產的實際情況和廠商的選擇,五種評估程式中的任何一種都能取得CE認證。以流程圖的方式可以右上角的圖表示。
鍋爐能效指令——類似於燃氣具指令,但少了模式F和G。共有四個模組:模式B、C、D和E,三個由評估模組組成的評估程式:B-C、B-D和B-E。
低電壓指令、電磁兼容性指令——均可以適用自我聲明的方式取得CE標誌,但要有相關的產品技術資料備查。
燃氣具產品符合性評估所用的具體技術標準

燃氣具指令下的協調標準

燃氣具指令——到目前為止,具體體現指令基本要求的燃氣具產品標準共有61個,請見下表。
EN 26 Gas-fired instantaneous water heaters for sanitary uses production, fitted with atmospheric burners
EN 30 Domestic cooking appliances burning gas fuel
EN 88 Pressure governors for gas appliances for inlet pressures up to 200 mbar
EN 89 Gas-fired storage water heaters for the production of domestic hot water
EN 125 Flame supervision devices for gas burning appliances — Thermo-electric flame supervision devices
EN 126 Multifunctional controls for gas burning appliances
EN 161 Automatic shut-off valves for gas burners and gas appliances
EN 203 Gas heated catering equipment
EN 257 Mechanical thermostats for gas-burning appliances
EN 297 Gas-fired central heating boilers — Type B11 and B11BS boilers fitted with atmospheric burners of nominal heat input not exceeding 70 kW
EN 298 Automatic gas burner control systems for gas burners and gas burning appliances with or without fans
EN 303 Heating boilers
EN 377 Lubricants for applications in appliances and associated controls using combustible gases except those designed for use in industrial processes
EN 416 Single burner gas-fired overhead radiant-tube heaters
EN 419 Non-domestic gas-fired overhead luminous radiant heaters
EN 437 Test gases — Test pressures — Appliance categories
EN 449 Specification for dedicated liquefied petroleum gas appliances — Domestic flueless space heaters (including diffusive catalytic combustion heaters)
EN 461 Specification for dedicated liquefied petroleum gas appliances — Flueless nondomestic space heaters not exceeding 10 kW
EN 483 Gas-fired central heating boilers — Type C boilers of nominal heat input not exceeding 70 kW
EN 484 Specification for dedicated liquefied petroleum gas appliances — Independent hotplates, including those incorporating a grill for outdoor use
EN 497 Specification for dedicated liquefied petroleum gas appliances — Multi purpose boiling burners for outdoor use
EN 498 Specification for dedicated liquefied petroleum gas appliances — Barbecues for outdoor use
EN 509 Decorative fuel-effect gas appliances
EN 521 Specifications for dedicated liquefied petroleum gas appliances — Portable vapour pressure liquefied petroleum gas appliances
EN 525 Non-domestic direct gas-fired forced convection air heaters for space heating not exceeding a net heat input of 300 kW
EN 549 Rubber materials for seals and diaphragms for gas appliances and gas equipment
EN 613 Independent gas-fired convection heaters
EN 621 Non-domestic gas-fired forced convection air heaters for space heating not exceeding a net heat input of 300 kW, without a fan to assist transportation of combustion air and/or combustion products
EN 624 Specification for dedicated LPG appliances — Room sealed LPG space heating equipment for installation in vehicles and boats
EN 625 Gas-fired central heating boilers — Specific requirements for the domestic hot water operation of combination boilers of nominal heat input not exceeding 70 kW
EN 656 Gas-fired central heating boilers — Type B boilers of nominal heat input exceeding 70 kW but not exceeding 300 kW
EN 676 Automatic forced draught burners for gaseous fuels
EN 677 Gas-fired central heating boilers — Specific requirements for condensing boilers with a nominal heat input not exceeding 70 kW
EN 732 Specifications for dedicated liquefied petroleum gas appliances — Absorption refrigerators
EN 751 Sealing materials for metallic threaded joints in contact with 1st, 2nd and 3rd family gases and hot water
EN 777 Multi-burner gas-fired overhead radiant tube heater systems for non-domestic use
EN 778 Domestic gas-fired forced convection air heaters for space heating not exceeding a net heat input of 70 kW, without a fan to assist transportation of combustion air and/or combustion products
EN 1020 Non-domestic gas-fired forced convection air heaters for space heating not exceeding a net heat input of 300 kW, incorporating a fan to assist transportation of combustion air and/or combustion products
EN 1106 Manually operated taps for gas burning appliances
EN 1196 Domestic and non-domestic gas-fired air heaters — Supplementary requirements for condensing air heaters
EN 1266 Independent gas-fired convection heaters incorporating a fan to assist transportation of combustion air and/or flue gases
EN 1319 Domestic gas-fired forced convection air heaters for space heating, with fanassisted burners not exceeding a net heat input of 70 kW
EN 1458 Domestic direct gas-fired tumble dryers of types B22D and B23D, of nominal heat input not exceeding 6 kW
EN 1596 Specification for dedicated liquefied petroleum gas appliances — Mobile and portable non-domestic forced convection direct fired air heaters
EN 1643 Valve proving systems for automatic shut-off valves for gas burners and gas appliances
EN 1854 Pressure sensing devices for gas burners and gas burning appliances
EN 12067 Gas/air ratio controls for gas burners and gas burning appliances
EN 12078 Zero governors for gas burners and gas burning appliances
EN 12244 Direct gas-fired washing machines, of nominal heat input not exceeding 20 kW
EN 12309 Gas-fired absorption and adsorption air-conditioning and/or heat pump appliances with a net heat input not exceeding 70 kW
EN 12669 Direct gas-fired hot air blowers for use in greenhouses and supplementary nondomestic space heating
EN 12752 Gas-fired type B tumble dryers of nominal heat input not exceeding 20 kW
EN 12864 Low-pressure, non adjustable regulators having a maximum outlet pressure of less than or equal to 200 mbar, with a capacity of less than or equal to 4 kg/h, and their associated safety devices for butane, propane or their mixtures
EN 13278 Open fronted gas-fired independent space heaters
EN 13611 Safety and control devices for gas burners and gas-burning appliances — General requirements
EN 13785 Regulators with a capacity of up to and including 100 kg/h, having a maximum nominal outlet pressure of up to and including 4 bar, other than those covered by EN 12864 and their associated safety devices for butane, propane or their mixtures
EN 13786 Automatic change-over valves having a maximum outlet pressure of up to and including 4 bar with a capacity of up to and including 100 kg/h, and their associated safety devices for butane, propane or their mixtures
EN 13836 Gas fired central heating boilers — Type B boilers of nominal heat input exceeding 300 kW, but not exceeding 1 000 kW
EN 14438 Gas-fired insets for heating more than one room
EN 14543 Specification for dedicated liquefied petroleum gas appliances — Parasol patio heaters — Flueless radiant heaters for outdoor or amply ventilated area use
EN 15033 Room sealed storage water heaters for the production of sanitary hot water using LPG for vehicles and boats
鍋爐能效指令——體現鍋爐能效指令基本技術要求沒有另外專門的標準,能效要求都包含在燃氣具指令相關產品標準里。
低電壓指令、電磁兼容性指令——適用的標準同家用電器產品標準,如:EN 60335-1,EN 55014-1,EN 55014-2,EN 61000-3-2, EN 61000-3-3等。
