| 廣東友鴻電子有限公司 GUANGDONG YOUHONG ELECTRONICS CO.,LTD. 承認書 | ||||
| SPECIFICATION FOR APPROVAL | ||||
| 客戶/CUSTOMER ： | ||||
| 產品名稱/PRODUCT NAME ：電源適配器/POWER SUPPLY | ||||
| 產品編號/ OUR P/N ： | ||||
| 產品型號/ OUR MODEL NO ：YOUHONG-1201 | ||||
| 客戶編號/ CUSTOMER P/N ： | ||||
| 標準/STANDARD ：EN60950+BS EN60950 | ||||
| 額定/：RATING | I/P:AC100-240V 0.2A 50/60HZ | |||
| O/P: DC5V 2A | ||||
| 備註/：REMARK | ||||
| 注意：在貴司出單前請回簽如下項目/Attention: Before placing orders, please confirm to sign back the followings: | ||||
| 產品規格書/Production Spec | ||||
| 銘牌規格（如有）/nameplate Spec(if any) | ||||
| 包裝規格（如有）/Packing Spec(if any) | ||||
| 描述/DESCRIPTION | 日期/DATA | 製作/DRAW BY | ||
| 00 | 2009-8-19 | |||
| 製造商：廣東友鴻電子有限公司 | ||||
| 製作/ DRAW BY | 核准/ checked BY | 日期/ DATA | ||
描述/Introduction輸入特性/Input Characteristic輸出特性/Output Characteristic規格要求/Performance Spec保護特點/Protection Features環境/Environmental絕緣阻抗測試/Insulation Resistance Test產品可靠性/ product MTBF重要安全要求/Important Safety Instructions主要測量設備/Major measure equipment銘牌/ Nameplate產品外觀/Product external appearance1 描述/Introduction
這個檔案描述的是反激變換器的特性：/This document presents performance characteristics of an isolated flyback converter moduledesigned :
外在可程式開關頻率，典型值：70KHZ/ External Programmable PWM Switching.
Frequency，Typical:70KHZ
非常好的保護功能：過流保護，過功率保護/very good protect function: over voltage protection, over current protection, over power protection
輸入特性/Input Characteristic 􀂃 額定AC輸入電壓AC100V-240V/AC input voltage rating AC 100V to 240V
􀂃 AC輸入頻率50HZ /60HZ /AC input frequency 50HZ / 60HZ
􀂃 輸入100VAC/50HZ滿載時最大浪涌電流10A，輸入240VAC/50HZ滿載時最大浪涌電流25A /Max. In-rush current 10 A for 100VAC/50HZ at full load(At cold Start ) 25 A for 240VAC/50HZ at full load
􀂃輸入電流0.2A (rms)最大在滿載100V ac~132Vac。輸入電流0.2A (rms)最大在滿載180V ac~240Vac/60HZ/ Input Current 0.3A (rms) max. @ full load, 100Vac~132Vac/60HZ0.3A (rms) max. @ full load, 180Vac~240Vac/50HZ
3 輸出特性/Output Characteristic
| 輸出電壓/Output Voltage | 負載狀態/Load Condition | 輸出範圍/Output Range | 紋波與噪音/Ripple & Noise | ||
| 額定/Rated | 峰值/Peak | NoLoad/空載 | Full load/滿載 | ||
| 5.0V DC | 2A | 5.0V-5.4V | 4.6V-5.0 V | <80mV | |
* 規格書上的輸出電壓範圍包含電線的負載電壓/Specified output regulation limit includes line and load regulation.
* 紋波與噪音的測試條件:測試時在輸出端並聯一個10uF的電解電容和
一個0.1uF的瓷片電容,標準測試頻帶DC-20MHz/Ripple and Noise is measured on output connector with 20MHz oscilloscope bandwidth differentially with a 10uF electrolitic and 0.1uF ceramic capacitors across output
規格要求/Performance Spec 􀂃 輸出總功率10W典型值/Total Output Power10W Typical
􀂃 郊率78%最小@100Vac/60HZ滿載/Efficiency 78%min. @ 100Vac/60HZ with full load
􀂃 支撐時間10 m sec 最小@100Vac/60HZ 滿載/Hold up Time 10m sec. min. @ 100Vac/60HZ with full load
􀂃 起動時間5Sec最大@100Vac/60HZ 滿載/Turn on Delay Time 5 sec. max. @ 100Vac/60HZ with full load
􀂃 開關頻率典型值70K/Switching frequency 70K Typical
5 保護特點/Protection Features
􀂃 短路保護保護後停止輸出（撤銷短路自動恢復）/ Short circuit Protection Output shut down (Auto recovery)
􀂃 過流保護/ Over Current Protection.
6 環境/Environmental
􀂃 工作溫度0℃ to + 35℃/Operating Temperature 0℃ to + 35℃
􀂃 工作濕度20 % to 90 % R. H./Operating Humidity 20 % to 90 % R. H.
􀂃 儲存溫度-40 ℃ to 85 ℃/Storage Temperature -40 ℃ to 85 ℃
􀂃 儲存濕度0 % to + 90 % R. H /Storage Humidity 0 % to + 90 % R. H.
7 絕緣耐壓測試/Dielectric withstand(Hi-pot)test
􀂃 輸入對輸出2500Vac/10Ma/3S/Input to Output 2500Vac/10Ma/3s
8 絕緣阻抗測試/Insulation Resistance Test
􀂃 輸入對輸出DC500V 100M ohm 最小/Input to Output DC 500V 100M ohm min.
9 產品可靠性/ product MTBF
􀂃產品可靠性最少2000小時@25℃ 滿載/MTBF 2000 Hour min of Full laod.
􀂃產品可靠性最少4000小時@25℃80%負載/MTBF 4000 Hour min of 80%laod.
10 重要安全要求/Important Safety Instructions
􀂃使用前請先看銘牌/Read these Label.
􀂃不要將產品放在靠近水源的地方/Do not use this apparatus near water.
􀂃只能用乾抹布清潔/Clean only with dry cloth.
􀂃請不要將產品放近發熱器附近，如，輻射源熱儲存器，爐，以及生熱的產品/Do not install near any heat sources such as radiators, heat registers, stoves,or other apparatus (including amplifiers) that produce heat.
􀂃如長時間不用，或閃電時，請拔掉插頭/Mains plug is disconnect device. Unplug this apparatus during lightning storms or when unused for long periods of time.
11 主要測量設備/ Major measure equipment
􀂃交流輸入電源/AC SOURCE. APW105
􀂃電子負載/ELECTRONIC LOAD:3310D
􀂃數字萬用表/DIGIAL MASTECH:GDM-8145
􀂃示波器/OSCILLOSCOPE: TD1012B
􀂃絕緣阻抗測試儀/Insulation Resistance 7112
􀂃多通道溫度測試儀/THERMOMETER:DWG-2
11.銘牌/ Nameplate

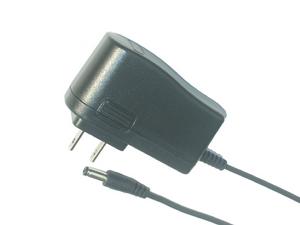

12產品外觀/Product external appearance
